| Brand Name : | Origin |
| Model Number : | LY-W03 |
| Payment Terms : | PAYPAL;TT |
| Supply Ability : | 10000/Month |
| Delivery Time : | 4-8 days |
| Certification : | CE & Rohs |

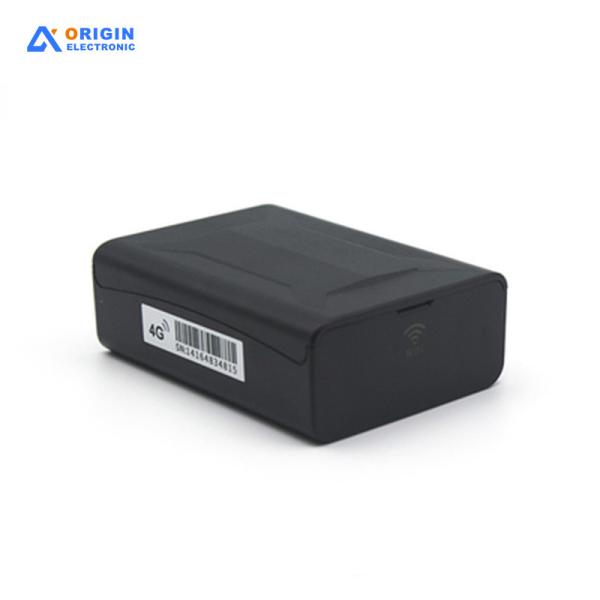

Mini - sized and easy to hide. It can be placed in a hidden corner of the asset, unnoticed,
but always guarding the asset's safety. Compatible with a variety of vehicle models.
Whether it's a family car or a large truck, it can be stably adsorbed and function properly for positioning and tracking.

Supports domestic 2G/4G networks

Built-in optical protection, remains in standby mode for extended periods, triggers platform alert when tampering detected

Multi-mode positioning: Satellite (GPS+BeiDou) + LBS + WiFi

Automatically identifies fake base stations and maintains normal communication






| Feature | Description |
|---|---|
| Alarm Mode | Maximum 4 daily wake-up times, automatically wakes up and sends location data before hibernation |
| Timed Mode | Regular location data transmission at set intervals |
| Weekly Mode | Schedule specific days/times for data transmission |
| Multi-mode Positioning | Automatic base station positioning when WiFi/GPS unavailable |
| Serial Port Settings | Configurable IP/port, APN, device number, alarm/timed/weekly modes |
| SMS Settings | Configurable via SMS commands |
| SMS Query | Returns current device parameters |
| Tamper Alert | Detects light exposure changes and triggers platform alerts (default enabled) |
| Anti Fake Base Station | Rejects connection to detected fake base stations |
| Item | Details |
|---|---|
| Antenna | Built - in GPS ceramic antenna |
| Built-in LED indicator | Positioning light: Yellow, Communication light: Red, Charging light: Blue |
| Battery | 1500mAh lithium battery 1500mAh nickel battery  |
| Working voltage/current | 24mA@3.7V (operating) 800uA@3.7V (standby)  |
| Host color | Black |
| Host size | L55.4mm * W36.6mm * H20mm |
| Working temperature | -25℃ to +75℃ |
| Storage temperature | -40℃ to +85℃ |
| Location module | HD8125 |
| Communication module | EC718E |
| G-sensor | DA218B |
| Charging IC | SGM41513YTFQ24G |
| GPS antenna | 18182MM |
| Power IC | LP6301AQVF |
| Power Amplifier IC | ES8311 |





|
                                 |
